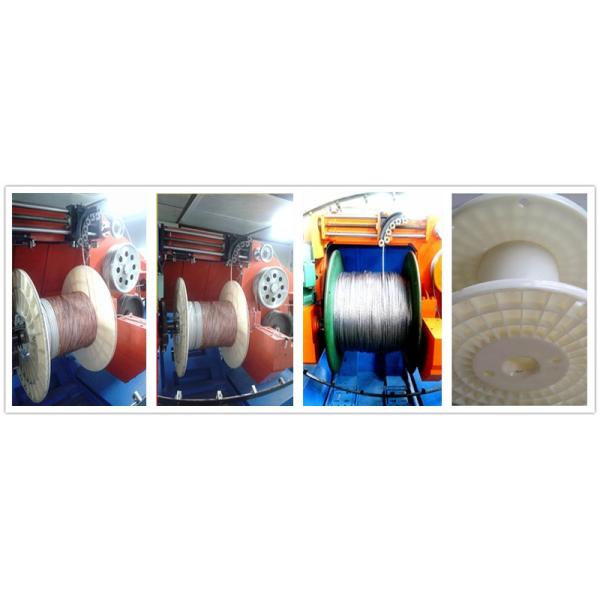

1250mm PVC Insulated Double Twist Wire Bunching Machine For Industry

Name: 1250mm PVC Insulated Double Twist Wire Bunching Machine For Industry
Brand: I-suntop
Price: 1 USD

China 1250mm PVC Insulated Double Twist Wire Bunching Machine For Industry wholesale

Brand Name : I-suntop

Model Number : GF-1250mm

Certification : SGS

Place of Origin : China

MOQ : 1set

Price : By negotiation

Payment Terms : L/C,T/T

Supply Ability : Up to different machine

Delivery Time : Min.30working days

Packaging Details : Plastic film+wooden box

Usage : stranding

Application : copper wire and PVC insulated wire or aluminum wire udder 7 strands

Warranty : 18 Months

Twisting sectional area : 3.0-50mm2

Power : AC380V ±10% 50-60HZ three-phase five-wire

Machine type : 1250mm

Contact Now

1250mm Double / Single Twist Copper Wire Bunching Machine Stranding Machine

i-suntop Electric wire and cable equipments2022022...

1. Application for 1250mm Double / Single Twist Copper Wire Bunching Machine Stranding Machine:
suitable for copper wire and PVC insulated wire or aluminum wire udder 7 strands conductor to concentric twisted, mainly used for cross section for 50mm2.
2. Technical parameters for 1250mm Double / Single Twist Copper Wire Bunching Machine Stranding Machine

Model No.		GF1250
Wire Dia.		soft copper wire: 1.0-2.6mm, aluminium wire: 1.2-2.6mm
Twisting sectional area		3.5-50mm2
Max. rotate speed		800rpm
Max. line speed	150m/min
Twisting pitch range	40-350mm
Max. traversing width	900mm
Brake system	disc brake
Operating direction	left/right hand machine
Size	600022002200mm
Weight	13500kg

3.The feature of 1250mm Double / Single Twist Copper Wire Bunching Machine Stranding Machine

High speed
High productivity
High quality
Easy to operate
One stop station services
