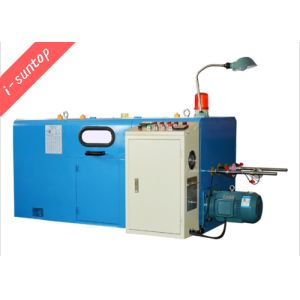

AC380V Copper Wire Double Twist Stranding Machine Bobbin Lift

1
2
3
4

China AC380V Copper Wire Double Twist Stranding Machine Bobbin Lift wholesale

China AC380V Copper Wire Double Twist Stranding Machine Bobbin Lift wholesale

China AC380V Copper Wire Double Twist Stranding Machine Bobbin Lift wholesale

China AC380V Copper Wire Double Twist Stranding Machine Bobbin Lift wholesale

Brand Name : I-suntop

Model Number : GF-650mm

Certification : SGS

Place of Origin : China

MOQ : 1set

Price : By negotiation

Payment Terms : L/C,T/T

Supply Ability : Up to different machine

Delivery Time : Min.30working days

Packaging Details : Plastic film+wooden box

Product name : Wire Cable Twist Bunching Machine

Warranty : 1year

Pitch type : Change gear to change pitch

Power : 7.5kw ,AC380V ±10% 50-60HZ three-phase five-wire

Machine type : 650mm

Conductor diamter : 0.16-1.0mm

Contact Now

650mm Wire Cable Twist Bunching Machine Double Twist Stranding Machine

i-suntop Electric wire and cable equipments2022022...

1. Application for 650mm Wire Cable Twist Bunching Machine Double Twist Stranding Machine
650 Double twist bunching machine suitable for more than 7 nos copper wire twisting ,the single wire diamter range is 0.15-1.0mm. Max finished section area will be 10mm2 (usual is 6mm2)
2. Technical parameters for 650mm Wire Cable Twist Bunching Machine Double Twist Stranding Machine

Model	GF-650
Wire.OD(mm)	Φ0.16-1.0
Twisted pitch(mm²)	6.0
Twisted pitch(mm)	5.68-57
Copper weight(kg)	400
Arch rotating(t/min)	1800
Twisted direction	S/Z
Take-up tension	Friction/clutch
Tension control	Spring actuated/automatic
Motor power(kw)	7.5
Machine diameter	285015001600
Machine weight	23000

3. The feature of 650mm Wire Cable Twist Bunching Machine Double Twist Stranding Machine

PLC+touch screen operating
SAFETY FRAME
SEASY MAINTENANCE
Less noise
HIgh Stable running
Bobbin lift by electric lift or hydralic (optional)
